XGT-9000

The evolution of μXRF! Combination of improved sensitivity and new imaging technology achieved high speed analysis of foreign materials in only one unit.

Advanced functions

Simple analysis operation with no preparation required and non-destructive analysis.

Measurement points can be accessed quickly through high-precision optical observation, even in the microscopic range.

Clear and High-speed Image Mapping

  • Shortened analysis time facilitates efficient measurement work.
  • X-ray images with very little noise allow for even clearer observation.

Clear Optical Image Observation and Coaxial X-ray Irradiation

  • Equipped with three kinds of illumination: coaxial, around and transmitted. Combining coaxial and around illuminations enables clear observation of samples with areas that are uneven, mirrored, etc.

  • Coaxial, perpendicular X-ray exposure and optical image observation prevent the measurement position of samples from becoming misaligned.


Employing of imaging technology based on Raman imaging technique

Highlighting a certain element as a characteristic point simplifies detection of foreign material, obstacles, etc.

A New Solution in Foreign Material Analysis

Foreign material is detected quickly through high-speed screening and highlighting through imaging processing. Additionally, the high resolution X-ray beam enables detailed analysis of elements contained in foreign material. This series of foreign material analyses can be completed with a single unit, up to the level of several ten μm.

Applications

Analysis of Foreign Material in Films

Even difficult to visually confirm foreign materials can be detected and analyzed while checking optical observation images with high resolution of them after elemental mapping screening.

Analysis of Hydrous Samples

Enables measurement of hydrous samples and foreign materials can be detected through image processing.

ModelXGT-9000XGT-9000SL
Basic information
InstrumentX-ray fluorescence analytical microscope
Sample typeSolids, Liquids, Particles
Detectable elementsF - Am
Chamber size450(W) x 500(D) x 80(H)1030(W) x 950(D) x 500(H)
Maximum sample size300(W) x 250(D) x 80(H)500(W) x 500(D) x 500(H)
Maximum mass of sample1 kg10 kg
Optical observationTwo high resolution cameras with objective lens
Optical designVertical-Coaxial X-ray and Optical observation
Sample illumination/observationTop, Bottom, Side illuminations/Bright and Dark fields
X-ray tube
Power50 W
VoltageUp to 50 kV
CurrentUp to 1 mA
Target materialRh
X-ray optics
Number of probesUp to 4
Primary X-ray filters for spectrum optimization5 positions
Detectors
X-ray Fluorescence detectorSilicon Drift Detector (SDD)
Transmission detectorNaI(Tl)
Mapping analysis
Mapping area100 mm x 100 mm350 mm x 350 mm
Step size2 mm4 mm
Operating mode
Sample environmentFull vacuum / Partial vacuum /
Ambient condition
Partial vacuum / Ambient condition*
* Detectable elements for SL version are from Na to Am


Schematics



XGT-9000

For simple analysis operation with no preparation required and non-destructive analysis

Manufactured by HORIBA Japan

RELATED PRODUCTS

Auto SE

Auto SE

Spectroscopic Ellipsometer for Simple Thin Film Measurement

CS-150

CS-150

SPM Monitor

EMGA-920

EMGA-920

Oxygen/Nitrogen Analyzer

EMGA-921

EMGA-921

Hydrogen Analyzer

EMGA-930

EMGA-930

Oxygen/Nitrogen/Hydrogen Analyzer

EMIA-Expert

EMIA-Expert

Carbon/Sulfur Analyzer

EMIA-Pro

EMIA-Pro

Carbon/Sulfur Analyzer

EMIA-Step

EMIA-Step

Carbon/Sulfur Analyzer

GD-Profiler 2™

GD-Profiler 2™

Discover a Whole New World of Information with Glow Discharge Optical Emission Spectrometer

GDOES Software

GDOES Software

Quantum and Image

HF HD-960L

HF HD-960L

Dissolved Oxygen Monitor in Low Concentration

IG-331

IG-331

Gloss Checker

IG-340

IG-340

Handy Gloss Checker – New

IG-410

IG-410

High Gloss Meter

LabRAM HR Evolution

LabRAM HR Evolution

Confocal Raman Microscope

LabRAM Soleil

LabRAM Soleil

Raman Microscope

MESA-50

MESA-50

X-Ray Fluorescence Analyzer

MESA-50K

MESA-50K

X-Ray Fluorescence Analyzer

SLFA-60

SLFA-60

X-ray Fluorescence Sulfur-in-Oil Analyzer

Smart SE

Smart SE

Powerful and Cost Effective Spectroscopic Ellipsometer

Ultima Expert LT

Ultima Expert LT

Affordable high performance ICP-OES

UVISEL 2 VUV

UVISEL 2 VUV

A versatile spectroscopic ellipsometer covering a large range from VUV to NIR

UVISEL Plus

UVISEL Plus

Spectroscopic Ellipsometer from FUV to NIR: 190 to 2100 nm

XGT-7200

XGT-7200

X-ray Analytical Microscope

AP-370 series
MoreAP-370 series

Air Pollution Monitor

APDA-371
MoreAPDA-371

Ambient Dust Monitor

APDA-372
MoreAPDA-372

Ambient Dust Monitor

AQMS
MoreAQMS

Air Quality Monitoring System

Auto SE
MoreAuto SE

Spectroscopic Ellipsometer for Simple Thin Film Measurement

Auto SE Accessories
MoreAuto SE Accessories

Customize your instrument

Auto Soft
MoreAuto Soft

Intuitive Auto-Soft Interface for the Auto SE and Smart SE

Customize with VBS
MoreCustomize with VBS

Scripts and ActiveX

DeltaPsi2 Software
MoreDeltaPsi2 Software

A Platform for HORIBA Scientific Ellipsometers

GD-Profiler 2™
MoreGD-Profiler 2™

Discover a Whole New World of Information with Glow Discharge Optical Emission Spectrometer

GDOES Accessories
MoreGDOES Accessories

Accessories for samples with various shapes, sizes and properties

GDOES Software
MoreGDOES Software

Quantum and Image

Gratings - OEM Diffraction Grating
MoreGratings – OEM Diffraction Grating

OEM gratings design and production capabilities

HU-200SS
MoreHU-200SS

Industrial MLSS meter (Four-Wire Analyzer)

ICP Neo
MoreICP Neo

ICP Software

ICP-OES
MoreICP-OES

Complete your ICP-OES Spectrometer for your specific needs

Instant Processing
MoreInstant Processing

On-the-fly custom data processing

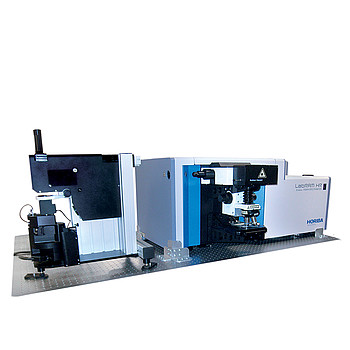

LabRAM HR Evolution
MoreLabRAM HR Evolution

Confocal Raman Microscope

LabRAM Nano
MoreLabRAM Nano

AFM-Raman for physical and chemical imaging

LabRAM Soleil
MoreLabRAM Soleil

Raman Microscope

LabSpec 6: Validated performance
MoreLabSpec 6: Validated performance

LabSpec 6 is a validated software

LEM-CT-670-G50
MoreLEM-CT-670-G50

Real Time Interferometric Process Monitor [CCD] Laser Interference Camera

MESA-50
MoreMESA-50

X-Ray Fluorescence Analyzer

MESA-50K
MoreMESA-50K

X-Ray Fluorescence Analyzer

MEXA-2000SPCS series
MoreMEXA-2000SPCS series

Solid Particle Counting System

Multivariate Analysis
MoreMultivariate Analysis

Data analysis for complex data sets

OBS-ONE PM unit
MoreOBS-ONE PM unit

On-board Emissions Measurement System

OneClick
MoreOneClick

Fast and easy Raman acquisition

OpenPleX
MoreOpenPleX

Manual label-free molecular interaction analysis machine Flexible Research Platform

Plasma Profiling TOFMS
MorePlasma Profiling TOFMS

Ultra-Fast, Sensitive and High Resolution Depth Profiling technique

PP-TOFMS Software
MorePP-TOFMS Software

Ergonomic software for data acquisition, data treatment and technical support

PX-375
MorePX-375

Continuous Particulate Monitor with X-ray Fluorescence

Smart SE
MoreSmart SE

Powerful and Cost Effective Spectroscopic Ellipsometer

Spectral Database Searching
MoreSpectral Database Searching

1750 Raman spectra available

Spectroscopic Ellipsometer - Large area mapping Ellipsometers
MoreSpectroscopic Ellipsometer – Large area mapping Ellipsometers

For Flat Panel Display and Photovoltaic Industries

Template and Methods
MoreTemplate and Methods

Recall settings, and automate processes

TFH-01/47
MoreTFH-01/47

PTFE Filter/TFH membrane

Ultima Expert
MoreUltima Expert

High resolution, high sensitivity and high stability ICP-OES

Ultima Expert LT
MoreUltima Expert LT

Affordable high performance ICP-OES

User Accounts
MoreUser Accounts

Password protected user access control

UVISEL 2
MoreUVISEL 2

Spectroscopic Ellipsometer

UVISEL 2 VUV
MoreUVISEL 2 VUV

A versatile spectroscopic ellipsometer covering a large range from VUV to NIR

UVISEL Plus
MoreUVISEL Plus

Spectroscopic Ellipsometer from FUV to NIR: 190 to 2100 nm

UVISEL Plus In-Situ
MoreUVISEL Plus In-Situ

In-situ spectroscopic ellipsometer for real-time thin film monitoring

XGT-7200
MoreXGT-7200

X-ray Analytical Microscope

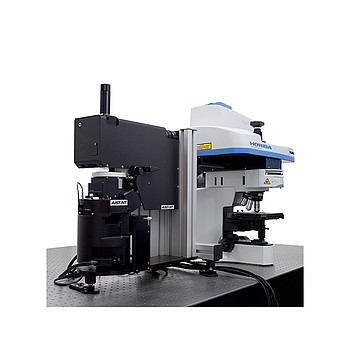

XploRA Nano
